MAGNUM Cable
The MAGNUM Cable is specially designed for installation in cement screeds. The mutual cable distance determines the power per m2. This gives you the freedom to install more power (faster reaction, higher temperatures) or less power (for constant or low temperatures).

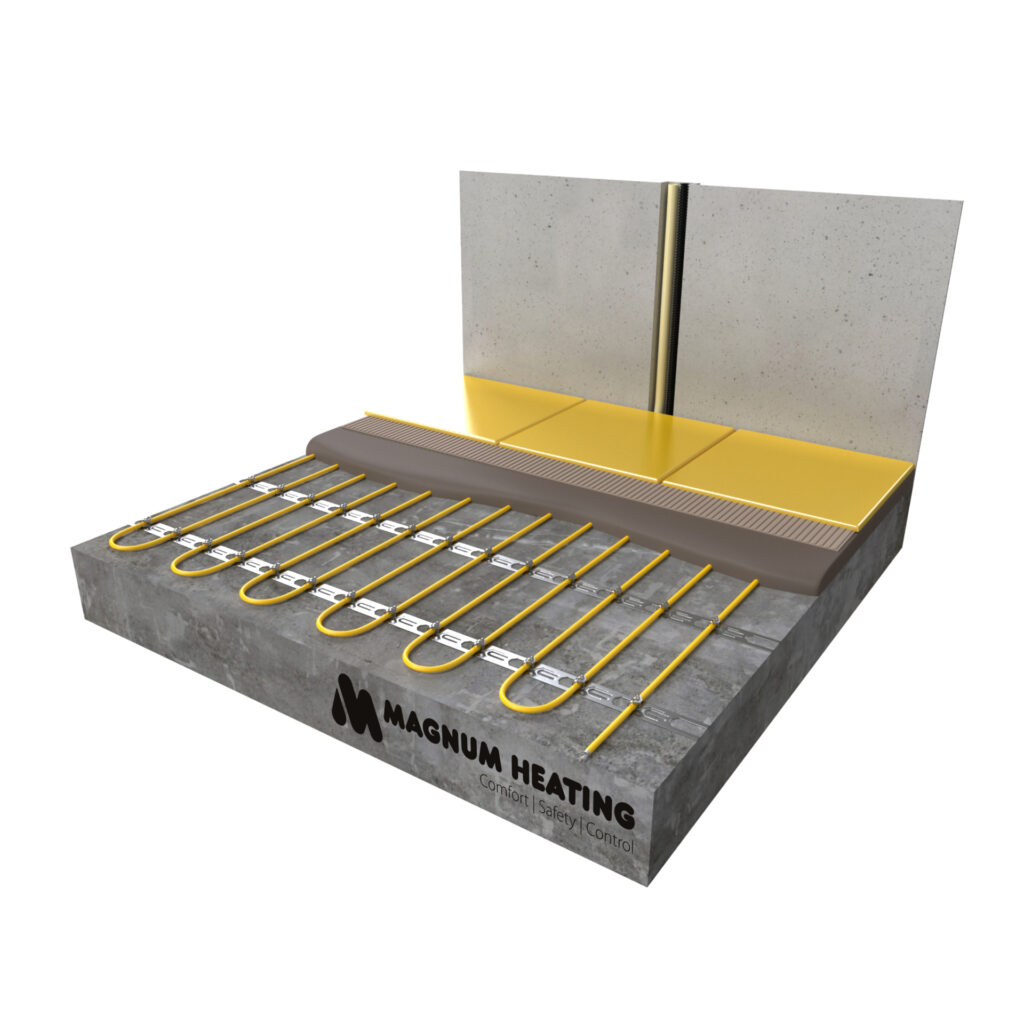

Because the cable is deformable, installation becomes easy. It can be attached to MAGNUM Isorol and dovetailed sheets through aluminum tape or to concrete mesh with tiewraps. There are also convenient spacer strips available for direct mounting on the floor.
The advanced WiFi thermostat takes into account the necessary warm-up time, so that your floor always has the right temperature at the right time. The absence of radiators on the wall offers optimal freedom in interior design. (If main heating is possible).
Installation methods
The cables (10 Watt) are available in total capacities from 100 to 1900 Watts, sufficient for surfaces between 1 and 20 m2. Because the cable is looped at the end, there is only one side of a power cable, which is invisibly attached through the unique connection. This means that there is no need for a return to the thermostat.
The cables (17 Watt) are available in total capacities from 300 to 3300 Watts, sufficient for surfaces between 2 and 30 m2. Because the cable is looped at the end, there is only one side of a power cable, which is invisibly attached through the unique connection. This means that there is no need for a return to the thermostat.
MAGNUM Cable is not suitable for use in lightweight concrete.
Example calculations cable distance
To calculate the correct cable distance, divide the number of square meters of free floor space by the total power of the set. Multiply the result by 10 or 17 (= Watts per meter cable). The first two numbers after the comma indicate the cable distance in centimeters.
Some examples of additional heating:
500 Watt cable on 3 m2: (166W/m2)
(3 m2 : 500 Watt) X 17 W/m1 = 0,102
Install the cable at 10 cm apart from each other
1000 Watt cable on 7 m2: (142W/m2)
(7 m2 : 1000 Watt) X 17 W/m1 = 0,119
Install the cable at 11-12 cm apart from each other
Package contents
- Heating cable
- Mounting tape
- Flexible tube for floor sensor
- Installation instructions
MAGNUM Cable 17 (Set)
| Art.nr. White | Art.nr. Black | Cable length | Power | Amps | Ohm |
| 100305 | 110305 | 17,6 m | 300 Watt | 1,3 | 177 |
| 100505 | 110505 | 29,4 m | 500 Watt | 2,2 | 109 |
| 100705 | 110705 | 41,2 m | 700 Watt | 3 | 76 |
| 101005 | 111005 | 58,8 m | 1000 Watt | 4,3 | 53 |
| 101255 | 111255 | 73,5 m | 1250 Watt | 5,5 | 42 |
| 101705 | 111705 | 100 m | 1700 Watt | 7,4 | 31 |
| 102105 | 112105 | 123,5 m | 2100 Watt | 9 | 25 |
| 102605 | 112605 | 152,9 m | 2600 Watt | 11,3 | 20 |
| 102905 | 112905 | 170,6 m | 2900 Watt | 12,8 | 18 |
| 103305 | 113305 | 194,1 m | 3300 Watt | 14,3 | 16 |
MAGNUM Cable 17 Watt (Single)
| Art.nr. | Cable length | Power | Amps | Ohm |
| 120300 | 17,6 m | 300 Watt | 1,3 | 177 |
| 120500 | 29,4 m | 500 Watt | 2,2 | 109 |
| 120700 | 41,2 m | 700 Watt | 3 | 76 |
| 121000 | 58,8 m | 1000 Watt | 4,3 | 53 |
| 121250 | 73,5 m | 1250 Watt | 5,5 | 42 |
| 121700 | 100 m | 1700 Watt | 7,4 | 31 |
| 122100 | 123,5 m | 2100 Watt | 9 | 25 |
| 122600 | 152,9 m | 2600 Watt | 11,3 | 20 |
| 122900 | 170,6 m | 2900 Watt | 12,8 | 18 |
| 123200 | 194,1 m | 3300 Watt | 14,3 | 16 |
MAGNUM Cable 10 Watt (Single)
| Art.nr. | Cable length | Power | Amps | Ohm |
| 120107 | 10 m | 100 Watt | 0,4 | 529 |
| 120207 | 20 m | 200 Watt | 0,9 | 264 |
| 120307 | 30 m | 300 Watt | 1,3 | 176 |
| 120407 | 40 m | 400 Watt | 1,7 | 132 |
| 120507 | 50 m | 500 Watt | 2,2 | 106 |
| 120607 | 60 m | 600 Watt | 2,6 | 88 |
| 120807 | 80 m | 800 Watt | 3,5 | 66 |
| 121007 | 100 m | 1000 Watt | 4,3 | 53 |
| 121207 | 120 m | 1200 Watt | 5,2 | 44 |
| 121507 | 150 m | 1500 Watt | 6,5 | 35 |
| 121907 | 190 m | 1900 Watt | 8,3 | 28 |
| Art.nr. | Options | Unit |
| 720100 | MAGNUM Stabiliser fibres | Bag of 150 gram |
| 720150 | MAGNUM Aluminium tape | Roll of 10 m x 5 cm |
| 720310 | MAGNUM Spacer strips | 10 m |
| 720315 | MAGNUM Spacer strips | 15 m |
| 720400 | MAGNUM Edge strips | Roll of 10 m x 10 cm |
| 720502 | MAGNUM Isorol | Roll of 24 m² (20 x 1,2 m) – 3 mm thick |
Specifications
| System type | Electric |
| System height | 7 mm |
| System width | Variable |
| Min. setting height | 30 mm |
| Installation | Screed |
| Power Cable 17 watt | 115 – 200W/m2 |
| Power Cable 10 watt | 60 – 115 W/m2 |
| In wet areas | V |
| Tiles | V |
| Wood | V |
| (PVC) Laminate | V |
| Carpet | V |
| Certification | CE, VDE |
| Warranty | Lifetime* |
*See conditions on: magnumheating.com
Technical details
- EMC-free, 2-conductor cable
- 2,5 meter three-wire power cable
- Unique blind connection between heating and connection cable
- Full enclosure by aluminum sheath
- Chrome/Nickel resistance wire
- XLPE insulation
- PVC protective sheath
- 10/17 Watt per meter power, 230 Volt
- Cable diameter approx. 7 mm
- Produced and inspected in accordance with IEC 800 standards
- VDE approved and CE standard within Europe
